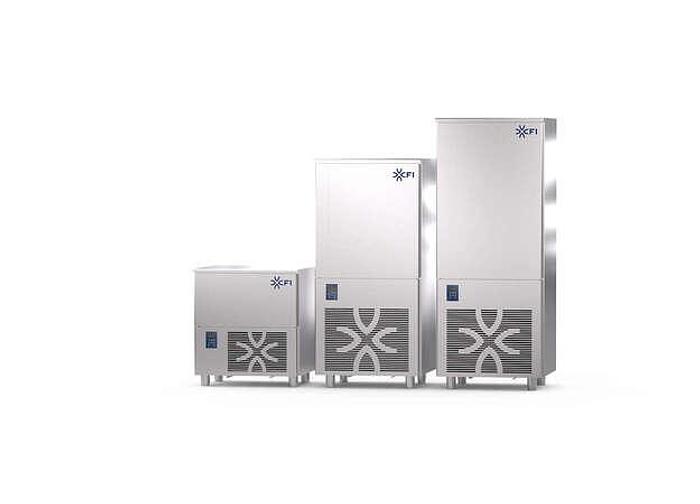

CFI Quick Cooling and Deep Freezing Cells

The DEEP BLUE 15P are positive rapid freezing and cooling cells with a single-door compartment, with 15 levels, designed to accommodate 26''x18'' or Gastronorm 1/1 trays or grids.

V-link control

4 cycles with return to cold at the end of the cycle:

1. Rapid cooling cycle;

2. Deep freezing cycle;

3. "Deep cold" cycle for common products;

4. "Soft" cycle for fragile products.

Quality and robustness:

• - Single-block structure and interior and exterior cladding in 304 stainless steel.
• - Thickness 60mm on the sides, 45mm on the floor and ceiling.
• - Rounded interior corners for easy cleaning.
• - Magnetic door seals.
• - Interior fittings in 304 stainless steel wire, disassembly in a single operation.
• - Reversible door on site.
• - Pivot hinges maintained from 90° with door return when closed.
• - Vertical evaporator fins: 5 mm pitch.
• - R452A refrigerant.
• - Battery protected by cataphoresis treatment.
• - A door contact stops the ventilation each time it is opened.
• - Air flow provided by two helical fans which draw in the center of the cell and blow, to the right and left, on the vertical evaporator.
• - 2 cycle operating modes: automatic by probe to be inserted or manual by timer with countdown
• - Automatic defrosting every 6 hours, controlled by an end of defrost probe in the evaporator.
• - Housed unit.

DEEP BLUE is available in 15 plates.

Capable of freezing between 11 and 38kg of products per cycle.
